Flexy POS

13.3” 1920×1080 TFT LCD display with touch screen

  • Configuration Flexibility
  • Appealing Design
  • Fanless Solution

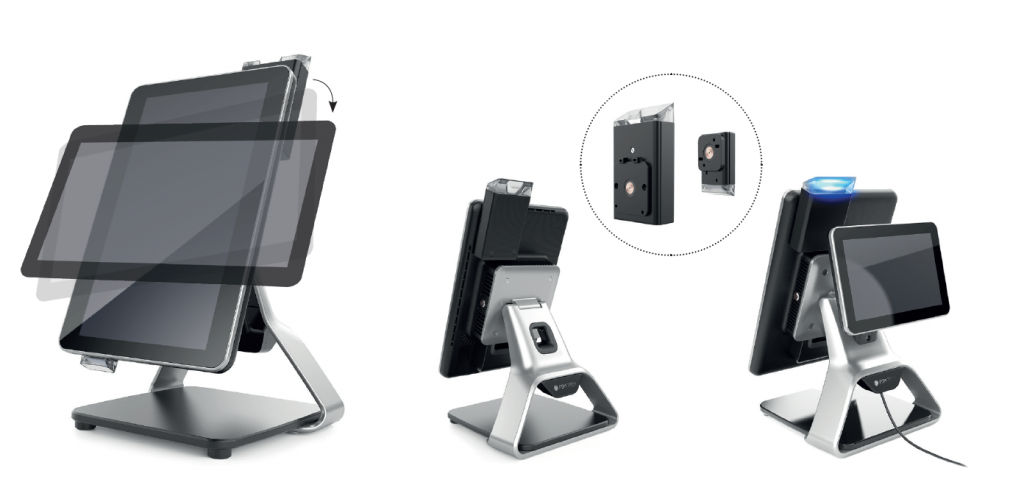

Accessories:
Smart Card Reader (optional)
Bar Code Reader (optional)
Table/Wall/Ceiling VESA Stand (optional)
Custom Accessories available on request

Technical Specifications

Processor

Intel® Celeron® N3350 Dual Core @1.1GHz (burst 2.4GHz), 2MB L2 Cache, 6W TDP


Mass Storage

Up to 64GB eMMC drive onboard
Optional SATA M.2 SSD module up to 512GB


Memory

Quad Channel soldered down LPDDR4 memory, up to 8GB


USB

2 x USB 3.0 Type-A sockets on Front Panel


Graphics

Integrated Intel® HD Graphics 505 or 500 series controller, with up to 18 Execution Units
4K HW decoding and encoding of HEVC(H.265), H.264, VP8, SVC, MVC


Audio

Internal HD Audio codec Cirrus Logic CS4207
2 x integrated speaker 8Ω / 1W


Video

Two multimode Display Port on miniDP++ connectors


Power Supply

DC Power jack with cable restraint 19VDC 40W


Networking

2 x Gigabit Ethernet ports
Optional M.2 4G LTE module (alternative to M.2 SSD), with internal microSIM slot
Optional M.2 WiFi/BT LE module


Security

Unique electronic serial number
TPM security device
Hardware protected chain of trust


Dimensions

333 x 219 x 68 mm (main device only)


Operating Temperature

0°C ÷ +60°C (Commercial version)
Environment temperature measured near the heatsink’s fins. Upon customer to verify that
the temperature remains within the admissible range.
