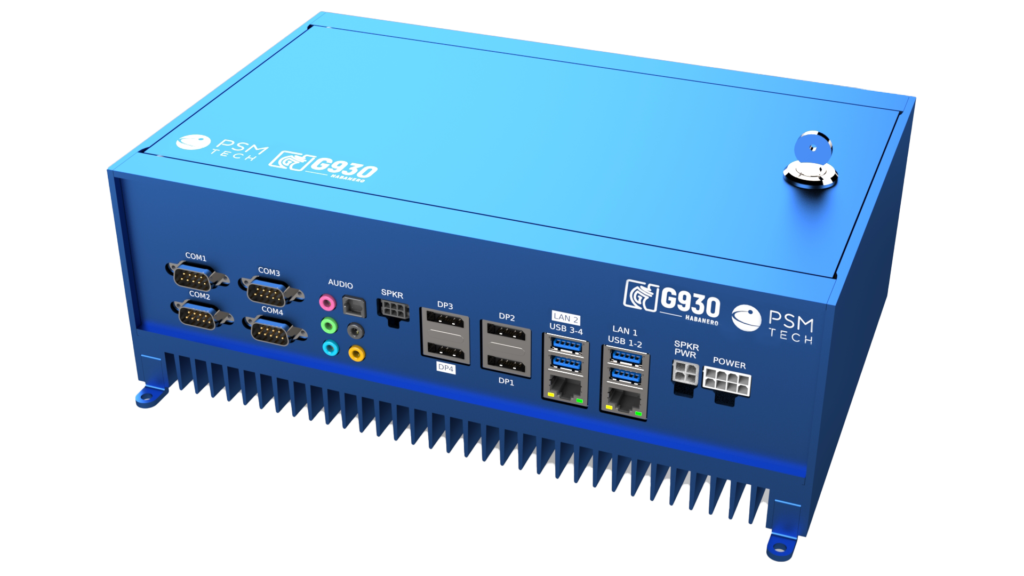

This platform is a cutting edge solution, with our highest flexibility and scalability ever, supporting up to 4x4k displays with various CPU families AMD or Intel.

Designed for Slot Machine producers and made for GLI11 certification and SAS support, fully configurable to your requirements.

Specifications

CPU
  • AMD Ryzen™ Embedded R1000 with GPU AMD Radeon™ Vega 3 up to Dual Core Four
    Thread @ 2.6GHz (3.5 Boost) TDP 25W
  • Intel® Atom™ x7-E3950 Quad Core @1.6 GHz (Burst 2.0GHz), 2MB L2 Cache, 12W TDP
  • AMD Ryzen™ Embedded V2000 with AMD Radeon™ Graphics up to 8 CU, 8 Core, 16
    Thread @ 2.9GHz (4.25 Boost) TDP 54W
  • AMD Ryzen™ Embedded V1000 with AMD Radeon™ Vega 11 Graphics, up to Quad Core
    Dual Thread @ 3.35GHz (3.8 Boost) TDP 54W
Cooling

Passive cooling / Active cooling

Security

TPM 1.2 / 2.0
Custom BIOS with Boot Security Chain on socket
Silicon Serial ID MAXIM INTEGRATED DS2401P (or equivalent)

Tamper Monitor

1x internal switch + 6 x external inputs *GLI-11 compliant*



System memory
  • Up to 8GB DDR3 for Intel® Atom™ x7-E3950
  • Up to 32GB DDR4 for AMD R1000 series CPU
  • Up to 32GB DDR4 for AMD V1000 series CPU
  • Up to 64GB DDR4 for AMD V2000 series CPU
NVRAM

Up to 4MB parallel SRAM (through PCI-e)
8kB SPI FRAM

Video outputs

3x DP++ connectors (4k res.) for AMD Ryzen™ R1000 and Intel® Atom™ x7-E3950
4x DP++ connectors (4k res.) for AMD Ryzen™ V1000 and V2000 series only

Audio

Standard 2.1 audio amplified (2x15W)
5.1 non-amplified connector 3.5mm

Mass storage

Up to 512 GB 2.5” SSD SATA3
Up to 512 GB M.2 SSD SATA3 (alternative to M.2 NVME)
Up to 512 GB M.2 NVME PCle (alternative to M.2 SATA, AMD only

Ethernet

Up to 2 GB Ethernet port

RS232 serial port

Up to 4x RS-232 on DB9 (external) *SAS compliant* + 1x RS-232 on pin header (internal) +
1x TTL on pin header (internal)

USB

4x USB 3.0 Type A (external) + 2x USB 2.0 Type A (external) + 2x USB 2.0 (internal on pin
header or external Type A)

Digital I/O

Output x 32, Input x 32

LED driver

RGB hardware driver with PWM for led strips up to 4A
WS2812B LED controller

Power Connector

Mini-Fit 2x4p

Operating Voltage

12V

Operative System

Ubuntu Linux 18.04
Windows 10 IoT

Certifications

CE, FCC ready
RoHs
WEEE
